THM

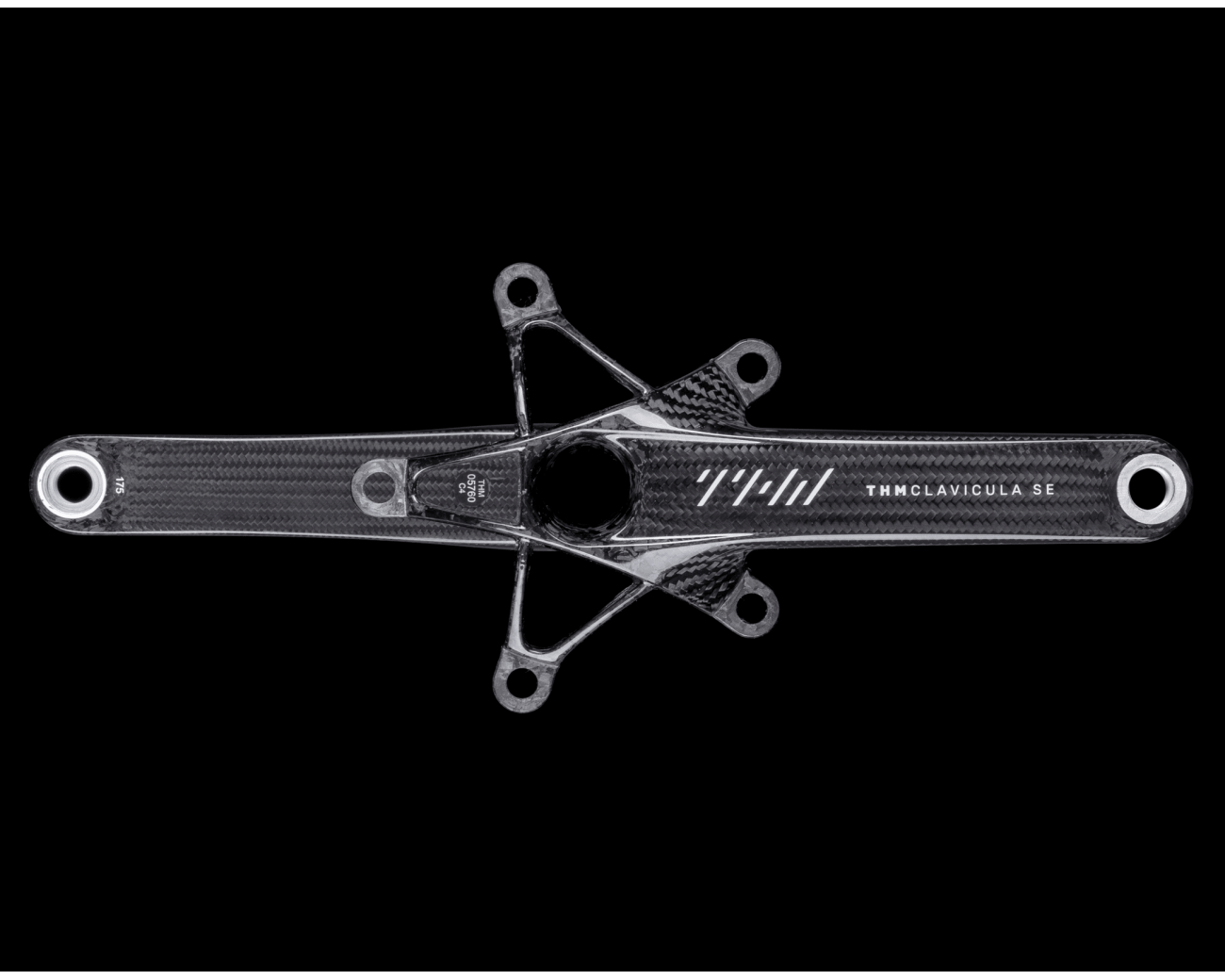

THM Clavicula SE Road Crank

THM Clavicula SE Road Crank

Regular price HK$13,000.00
Regular price Sale price HK$13,000.00
Sale Sold out
Size
Color

PRODUCT OVERVIEW

??

Clavicula sine exceptione ?€? No rule without exception! Our top-line, full-carbon crank with integrated carbon axle is engineered like no other. In development we focused on optimizing its geometrical and structural definition, based on a precise analysis of load paths.

As a result, it is extraordinarily stiff in all planes, exactly what?€?s required for loss-free power transmission. We are particularly proud of the patented connection between left-hand crank and axle ?€? THM is the first to successfully productionize a carbon-to-carbon interface at the heart of the bicycle drive train.

Aligning the fibers of the external and internal splines reduces wear to near zero and eliminates noise. And, of course, it?€?s lighter, 293 g with spider. Clavicula SE beats all our own benchmarks and is the new reference in crank design.

??

THM CLAVICULA SE POWERMETER

Clavicula sine exceptione ?€? No rule without exception!

Our top-line, full-carbon crank is the benchmark for lightweight crank sets for years. With adding strain gauges and a small light electronic module in the axle, powered by a lightweight rechargeable li-ion battery, we achieved to keep the additional weight for the powermeter feature for our Clavicula SE under 27 g. Furthermore you are free to ride your desired lightweight pedals.

In total this leads with only 320 g for compact and 329 g for standard to the lightest powermeter on the market.


TECHNICAL INFO

Weight

about 302 g (0.67 lb) for cranksystem Standard and about 293 g (0.65 lb) for cranksystem Compact

Mounting

fits any frame with standard 68 mm BSA shell. Available for BB30, BB30A, Pressfit30, Shimano Pressfit, Italian threading, BB386 EVO, BBright???-Pressfit

BBright??? Direct Fit (only Cervelo frame R5ca) also available BB 386 (only AX Lightness frame ViAL EVO) also available

Chainrings

THM-Carbones recommend Praxis Works (not included)

Q-Factor

148 mm

Chainline

43,5 mm

Inner width of the cranks

118 mm

Available lengths

170, 172,5 or 175 mm

Max. permissible total weight
(rider+bicycle+luggage)

120 kg (264 lb)

??

??

THM

CLAVICULA SE POWERMETER

Crankset: CLAVICULA SE Compact or Standard
Weight (??5%): 320 g compact; 329 g standard (without chainrings)
Diameter axle: 30 mm
BCD: 5 bolt 110 mm or 130 mm
Sensor position: Integrated in the axle (measures leftside)
Measurement: Power, Cadence, Torque effectiveness, Pedal Smoothness (L)
Power range: 0 W ?€? 1999 W
Accuracy: +/- 2 %
Connectivity: ANT+; Bluetooth LE
Handheld ANT+ or Bluetooth compatible bike computer or smartphone
App Team ZWATT Power Meter
Manufacture electric module??
SENSITIVUS gauge
Firmware: Firmware updates via App
Battery Integrated Rechargeable Li-ion battery
Runtime 150 h
Waterproofing: IP 67

??
